RELIABLE TARGET TRACKING IN ANY LIGHTING CONDITION

  > Designed for use with IR-LOCK Sensor
> Max Detection Range: 15+ meters
> Reliable detection in bright sunlight and complete darkness
> No lighting calibration required
> Drop-in replacement for previous MarkOne beacon versions
> Compatible with SF20 and LW20 rangefinders

The MarkOne Beacon System provides robust and reliable target detection in virtually all lighting conditions, including highly reflective surroundings, e.g., when flying over water, vehicles, etc. See the demo videos below, and check the documentation for more details on integrating IR-LOCK into your robotics project.

MarkOne Documentation

ArduCopter Precision Landing Documentation

Detection Characteristics (pdf)

Specifications:
Detection Range: 15+ meters (Detection Characteristics PDF)
Beam Angle: ~70 degrees
PCB Dimensions: 100x50x8mm
Dimensions File: MarkOne2.dwg
Voltage Input: 10.2-14V (suitable for 3 cell lipo)
Power Consumption: 0.25A @ 12V
Power Connector: 2 Pin JST PH (S2B-PH-SM4-TB(LF)(SN))

Package Includes:

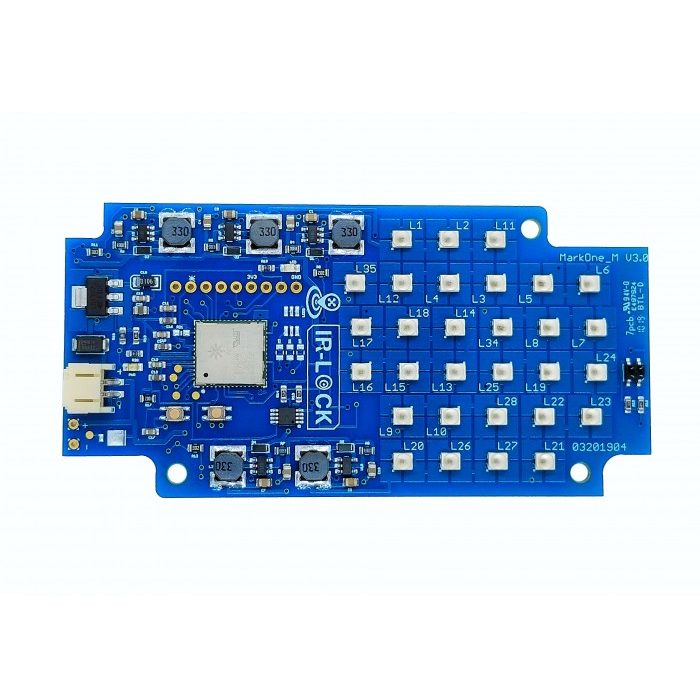

1x MarkOne V3.0 Beacon

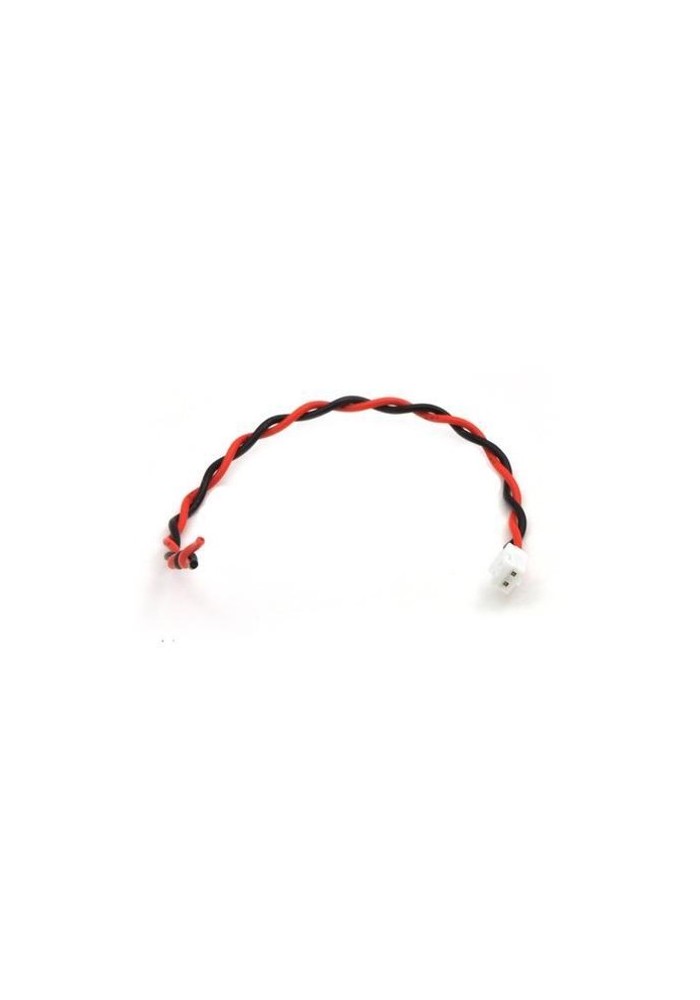

1x Female JST PH Cable (14cm)

Tutorial for Precision Landing with the Cube:https://irlock.readme.io/docs

Send technical/support questions to info@irlock.com
